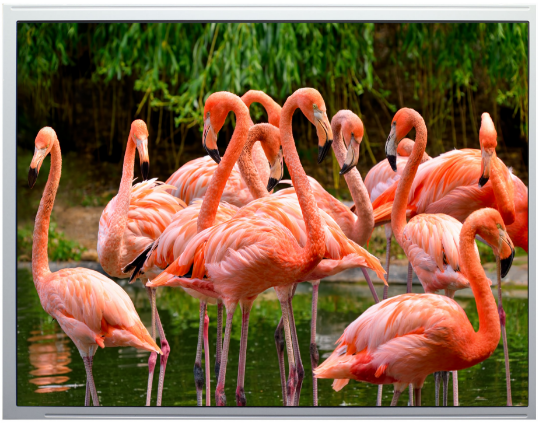

Picture of 12.1" 800x600 SVGA Resolution Industrial TFT with Advanced Wide View Technology

12.1" 800x600 SVGA Resolution Industrial TFT with Advanced Wide View Technology

Kyocera P/N: TCG121SVLQEPNN-AN20

Normally Black AWV, 450nits LED Backlight, Built In LED Backlight, LVDS Interface



I/F + B/L Cable: OAI-80038AA-2008-A

Products specifications
Module Type TFT Digital
Diagonal Size 12.1"
Type Transmissive
Display Mode AWV - Normally Black
Backlight LED
Resolution 800X600
Brightness 450
Contrast Ratio 650:1
Interface LVDS
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Outer Dimension (mm) 265 (W) x 207.7 (H) x 9.6D
Touchscreen None
Products specifications
Module Type TFT Digital
Diagonal Size 12.1"
Type Transmissive
Display Mode AWV - Normally Black
Backlight LED
Resolution 800X600
Brightness 450
Contrast Ratio 650:1
Interface LVDS
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Outer Dimension (mm) 265 (W) x 207.7 (H) x 9.6D
Touchscreen None
