Home
/
Products
/
Industrial TFTs
/
5.7"
/

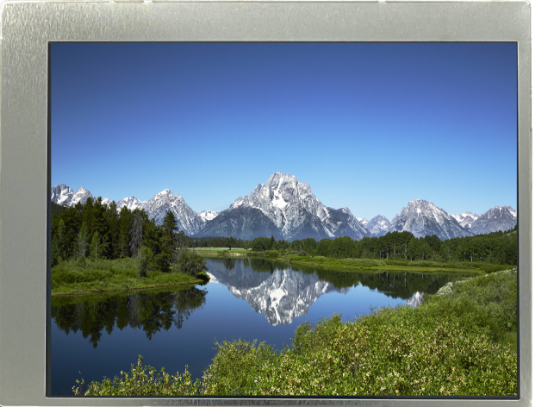

5.7" 320x240 QVGA Resolution Industrial TFT with Super High Bright Backlight
5.7" 320x240 QVGA Resolution Industrial TFT with Super High Bright Backlight
Kyocera P/N:
TCG057QVLHA-G50
Add to wishlist
Compare
Email a friend
Qty:
Add Spec to Cart
Normally White TN, 1000nits LED Backlight, CMOS Interface
Specifications
Products specifications
Country of Origin
Taiwan
Module Type
TFT Digital
Diagonal Size
5.7"
Type
Transmissive
Display Mode
TN - Normally White
Backlight
LED
Resolution
320X240
Brightness
1000
Contrast Ratio
500:1
Interface
CMOS
Vertical Viewing Angle:
-80/80
Horizontal Viewing Angle:
-80/80
Operating Temperature (C)
-20 to 70
Storage Temperature (C)
-30 to 80
Temperature
Standard Industrial Temp
Outer Dimension (mm)
134.5 (W) x 103.4 (H) x 8D
Touchscreen
None
