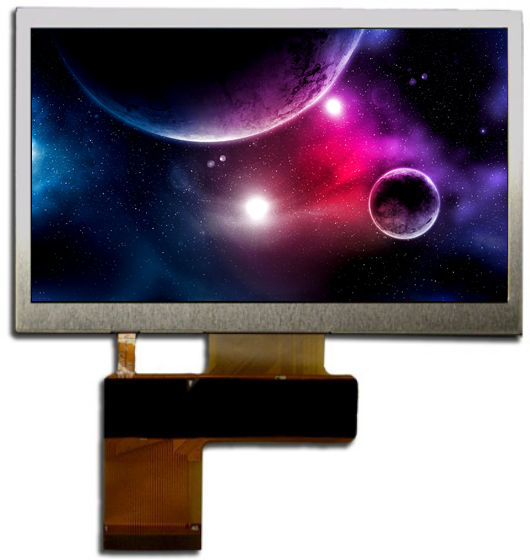

4.3" 480x272 Resolution Industrial TFT with High Bright Backlight
4.3" 480x272 Resolution Industrial TFT with High Bright Backlight
Kyocera P/N:
TCG043WQLBAANN-GN50
Add to wishlist
Compare
Email a friend
Qty:
Add Spec to Cart
Normally White TN, 800nits LED Backlight, CMOS Interface
Compare to Mitsubishi p/n AC043NA11
Specifications
Products specifications
Country of Origin
China
Module Type
TFT Digital
Diagonal Size
4.3"
Type
Transmissive
Display Mode
TN - Normally White
Backlight
LED
Resolution
480X272
Brightness
800
Contrast Ratio
350:1
Interface
CMOS
Vertical Viewing Angle:
-65/60
Horizontal Viewing Angle:
-70/70
Operating Temperature (C)
-20 to 70
Storage Temperature (C)
-30 to 80
Temperature
Standard Industrial Temp
Outer Dimension (mm)
105.5 (W) x 67.2 (H) x 5.9D
Touchscreen
None
