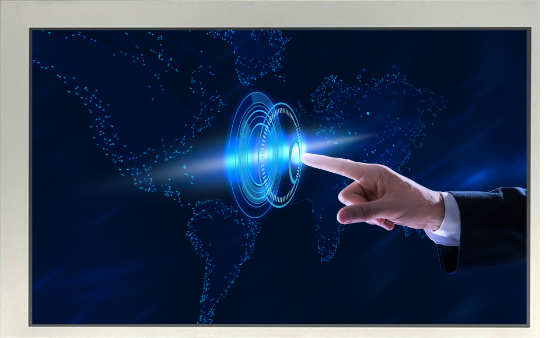

Picture of 5.8" 1280x768 Resolution Industrial TFT with Perimeter Tape Bonded PCAP

5.8" 1280x768 Resolution Industrial TFT with Perimeter Tape Bonded PCAP

Kyocera P/N: KDA-058-20005S-A



Base Kyocera Standard TFT P/N: TCG058WXLPBVNN-AN30



Normally Black AWV, 800nits LED Backlight, LVDS Interface

USB or I2C PCAP Controller Interface



Please contact us for additional information.

Products specifications
Module Type TFT Digital
Diagonal Size 5.8"
Type Transmissive
Display Mode AWV - Normally Black
Backlight LED
Resolution 1280X768
Brightness 800
Contrast Ratio 1000:1
Interface LVDS
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Outer Dimension (mm) 141.29 (W) x 88.5 (H) x 7.49D
Touchscreen PCAP
Products specifications
Module Type TFT Digital
Diagonal Size 5.8"
Type Transmissive
Display Mode AWV - Normally Black
Backlight LED
Resolution 1280X768
Brightness 800
Contrast Ratio 1000:1
Interface LVDS
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Outer Dimension (mm) 141.29 (W) x 88.5 (H) x 7.49D
Touchscreen PCAP
