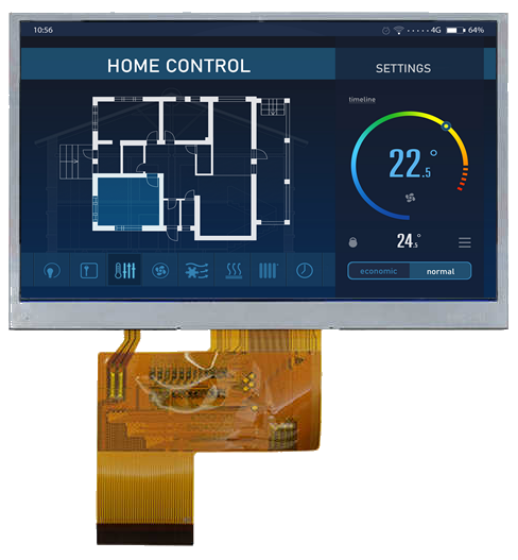

Picture of 4.3" 480x272 Resolution Industrial IPS TFT with High Bright Backlight

4.3" 480x272 Resolution Industrial IPS TFT with High Bright Backlight

Kyocera P/N: KII-043

*** UNDER DEVELOPMENT ***

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Normally Black IPS, 24/8 BIT RGB Interface, 900cd/m² LED Backlight

Please contact us for current availability.

Specifications

Products specifications

Country of Origin	China
Module Type	TFT
Diagonal Size	4.3"
Type	Transmissive
Display Mode	IPS - Normally Black
Backlight	LED
Resolution	480X272
Brightness (cd/m2)	900
Contrast Ratio	800:1
Interface	24/8 BIT RGB
Vertical Viewing Angle:	-80/80
Horizontal Viewing Angle:	-80/80
Operating Temperature (C)	-30 to 85
Storage Temperature (C)	-30 to 85
Temperature	Extended Industrial Temp
Outer Dimension (mm)	105.4 (W) x 67.15 (H) x 2.85 (D)
Touchscreen	None
