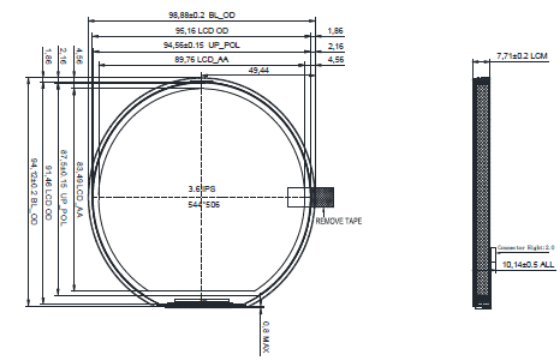

Picture of 3.6" 544 x 506 Resolution Round Industrial TFT

3.6" 544 x 506 Resolution Round Industrial TFT

Kyocera P/N: KII-036AUFPA002
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Normally Black IPS, 24 BIT RGB, 1300cd/m² LED Backlight

Products specifications
Module Type TFT
Diagonal Size 3.6"
Type Transmissive
Display Mode IPS - Normally Black
Resolution 544X506
Brightness (cd/m2) 1300
Contrast Ratio 1200:1
Interface 24 BIT RGB
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -35 to 85
Storage Temperature (C) -35 to 85
Temperature Extended Industrial Temp
Viewing Dir. ALL
Outer Dimension (mm) 48.08 (W) x 49.95 (H) x 1.94 (D)
Backlight LED
Touchscreen None
Products specifications
Module Type TFT
Diagonal Size 3.6"
Type Transmissive
Display Mode IPS - Normally Black
Resolution 544X506
Brightness (cd/m2) 1300
Contrast Ratio 1200:1
Interface 24 BIT RGB
Vertical Viewing Angle: -85/85
Horizontal Viewing Angle: -85/85
Operating Temperature (C) -35 to 85
Storage Temperature (C) -35 to 85
Temperature Extended Industrial Temp
Viewing Dir. ALL
Outer Dimension (mm) 48.08 (W) x 49.95 (H) x 1.94 (D)
Backlight LED
Touchscreen None
