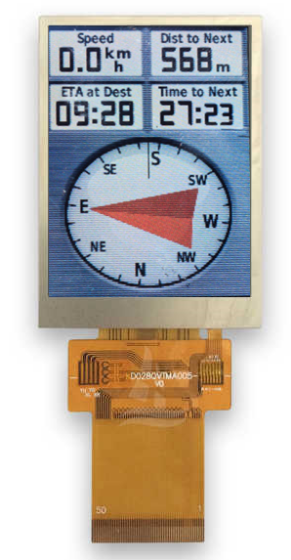

2.8" 240 x 320 Resolution Industrial TFT

Kyocera P/N: KII-028QVTMA005
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Normally White TN, SPI/RGB/MCU Interface, 480cd/m² LED Backlight, Portrait Mode

Products specifications
Module Type TFT
Diagonal Size 2.8"
Type Transmissive
Display Mode TN - Normally White
Resolution 240x320
Brightness (cd/m2) 480
Contrast Ratio 500:1
Interface SPI/RGB/MCU
Vertical Viewing Angle: -20/50
Horizontal Viewing Angle: -45/45
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Viewing Dir. 12:00
Outer Dimension (mm) 50.5 (W) x 69.7 (H) x 2.6 (D)
Backlight LED
Touchscreen None
Products specifications
Module Type TFT
Diagonal Size 2.8"
Type Transmissive
Display Mode TN - Normally White
Resolution 240x320
Brightness (cd/m2) 480
Contrast Ratio 500:1
Interface SPI/RGB/MCU
Vertical Viewing Angle: -20/50
Horizontal Viewing Angle: -45/45
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Viewing Dir. 12:00
Outer Dimension (mm) 50.5 (W) x 69.7 (H) x 2.6 (D)
Backlight LED
Touchscreen None
