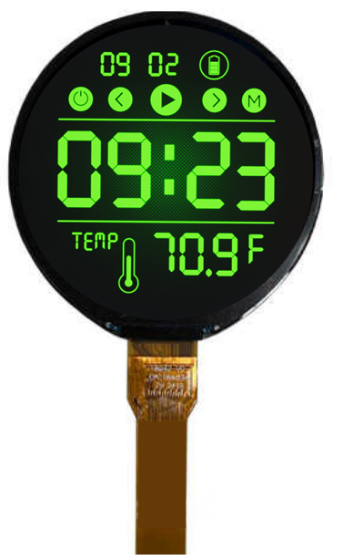

Picture of 1.8" 360 x 360 Resolution Round Industrial TFT

1.8" 360 x 360 Resolution Round Industrial TFT

Kyocera P/N: KII-018

*** UNDER DEVELOPMENT ***

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Normally Black IPS, 8BIT MCU\QSPI\3/4SPI Interface, 800cd/m² LED Backlight

Please contact us for current availability.

Specifications

Products specifications

Module Type	TFT
Diagonal Size	1.8"
Type	Transmissive
Display Mode	IPS - Normally Black
Resolution	360X360
Brightness (cd/m2)	800
Contrast Ratio	800:1
Interface	8BIT MCU, QSPI, 3/4SPI
Vertical Viewing Angle:	-85/85
Horizontal Viewing Angle:	-85/85
Operating Temperature (C)	-20 to 70
Storage Temperature (C)	-30 to 80
Temperature	Standard Industrial Temp
Viewing Dir.	ALL
Outer Dimension (mm)	48.08 (W) x 49.95 (H) x 1.94 (D)
Backlight	LED
Touchscreen	None

Products specifications

Module Type	TFT
Diagonal Size	1.8"
Type	Transmissive
Display Mode	IPS - Normally Black
Resolution	360X360
Brightness (cd/m2)	800
Contrast Ratio	800:1
Interface	8BIT MCU, QSPI, 3/4SPI
Vertical Viewing Angle:	-85/85
Horizontal Viewing Angle:	-85/85
Operating Temperature (C)	-20 to 70
Storage Temperature (C)	-30 to 80
Temperature	Standard Industrial Temp
Viewing Dir.	ALL
Outer Dimension (mm)	48.08 (W) x 49.95 (H) x 1.94 (D)
Backlight	LED
Touchscreen	None
