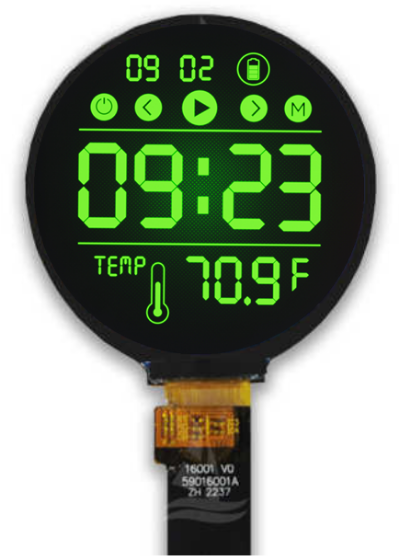

Picture of 1.6" 400 x 400 Resolution Round Industrial TFT

1.6" 400 x 400 Resolution Round Industrial TFT

Kyocera P/N: KII-016

*** UNDER DEVELOPMENT ***

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Normally Black, IPS, 1Lane MIPI Interface, 350cd/m² LED Backlight

Please contact us for current availability.

Specifications

Products specifications

Module Type	TFT
Diagonal Size	1.6"
Type	Transmissive
Display Mode	IPS - Normally Black
Resolution	400X400
Brightness (cd/m2)	350
Contrast Ratio	1000:1
Interface	1Lane MIPI
Vertical Viewing Angle:	-85/85
Horizontal Viewing Angle:	-85/85
Operating Temperature (C)	-20 to 70
Storage Temperature (C)	-30 to 80
Temperature	Standard Industrial Temp
Viewing Dir.	ALL
Outer Dimension (mm)	42.94 (W) x 45.89 (H) x 1.94 (D)
Backlight	LED
Touchscreen	None
