Home
/
Products
/
Memory In Pixel
/
1.03"
/
1.03" 128x128 Resolution Memory In Pixel (MIP) TFT
1.03" 128x128 Resolution Memory In Pixel (MIP) TFT
Kyocera P/N:
TN0103ANVNANN-GN00
Add to wishlist
Compare
Email a friend
Qty:
Add Spec to Cart
ECB Mode (Normally Black), Reflective Technology, Ultra Low Power Consumption
Specifications
Products specifications
Country of Origin
Japan
Module Type
Memory In Pixel (MIP)
Diagonal Size
1.03"
Type
Reflective
Display Mode
ECB (Normally Black)
Backlight
No Backlight
Resolution
128X128
Contrast Ratio
40:1
Interface
Serial
Vertical Viewing Angle:
-60/60
Horizontal Viewing Angle:
-60/60
Operating Temperature (C)
-20 to 70
Storage Temperature (C)
-30 to 80
Power Consumption Typ. (Fixed Screen)
10µW
Power Consumption Typ. (Rewrite)
35µW

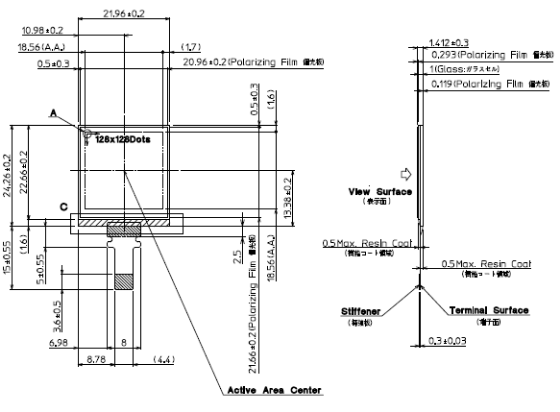

Outer Dimension (mm)
21.96 (W) x 24.26 (H) x 1.41 (D)
Products specifications
Country of Origin
Japan
Module Type
Memory In Pixel (MIP)
Diagonal Size
1.03"
Type
Reflective
Display Mode
ECB (Normally Black)
Backlight
No Backlight
Resolution
128X128
Contrast Ratio
40:1
Interface
Serial
Vertical Viewing Angle:
-60/60
Horizontal Viewing Angle:
-60/60
Operating Temperature (C)
-20 to 70
Storage Temperature (C)
-30 to 80
Power Consumption Typ. (Fixed Screen)
10µW
Power Consumption Typ. (Rewrite)
35µW
Outer Dimension (mm)
21.96 (W) x 24.26 (H) x 1.41 (D)
