Picture of 10.1" WXGA 1280x800 Resolution Super High Bright Industrial TFT

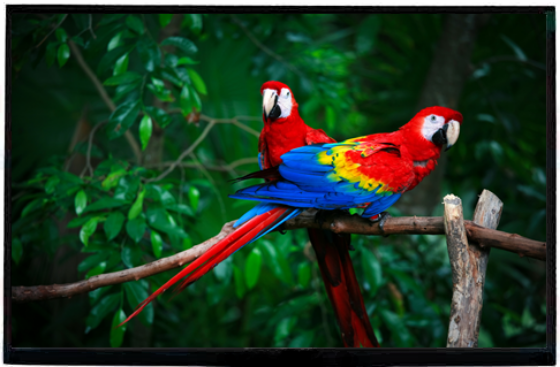

10.1" WXGA 1280x800 Resolution Super High Bright Industrial TFT

Kyocera P/N: KII-101WXGA*

*** UNDER DEVELOPMENT ***

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Normally Black, IPS, 1350cd/m² Brightness, 8 BIT LVDS Interface

Please contact us for current availability.

Specifications

Products specifications

Module Type	TFT
Diagonal Size	10.1"W
Type	Transmissive
Display Mode	IPS - Normally Black
Resolution	1280X800
Brightness (cd/m2)	1350
Contrast Ratio	2000:1
Interface	8 BIT LVDS
Vertical Viewing Angle:	-80/80
Horizontal Viewing Angle:	-80/80
Operating Temperature (C)	-30 to 80
Storage Temperature (C)	-30 to 80
Temperature	Standard Industrial Temp
Viewing Dir.	ALL
Outer Dimension (mm)	228.80 (W) x 147.90 (H) x 4.66 (D)
Backlight	LED
Touchscreen	None
