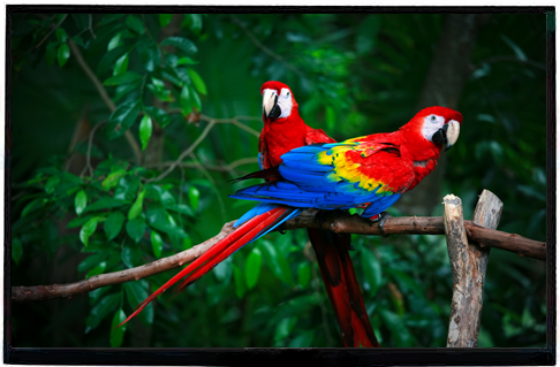

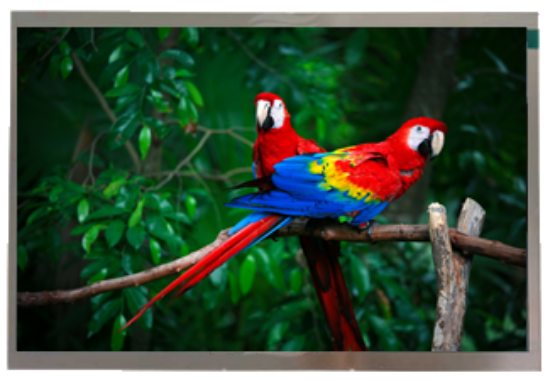

Picture of 10.1" WXGA 1280x800 High Bright Industrial TFT

10.1" WXGA 1280x800 High Bright Industrial TFT

Kyocera P/N: KII-101HDFLD056A
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Normally Black, IPS, 1350cd/m² Brightness, 8 BIT LVDS Interface

Products specifications
Country of Origin China
Module Type TFT
Diagonal Size 10.1"W
Type Transmissive
Display Mode IPS - Normally Black
Resolution 1280X800
Brightness (cd/m2) 1350
Contrast Ratio 2000:1
Interface 8 BIT LVDS
Vertical Viewing Angle: -80/80
Horizontal Viewing Angle: -80/80
Operating Temperature (C) -30 to 80
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Viewing Dir. ALL
Outer Dimension (mm) 228.80 (W) x 147.90 (H) x 4.66 (D)
Backlight LED
Touchscreen None
