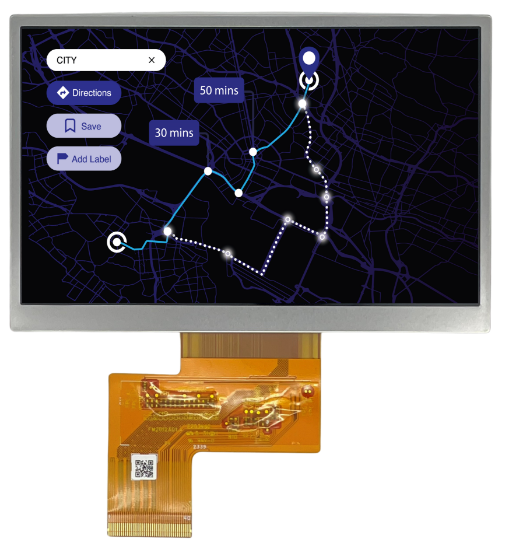

5.0" 800 x 480 WVGA Resolution Industrial TFT

Kyocera P/N: TCG050WVL
UNDER DEVELOPMENT - MP AVAILABILTY APRIL 2024

Normally White TN, 900nits LED Backlight, LVDS Interface, High Bright



Please contact us for additional information.

Products specifications
Module Type TFT Digital
Diagonal Size 5.0"W
Type Transmissive
Display Mode AWV - Normally Black
Resolution 800x480
Brightness 900
Contrast Ratio 500:1
Interface LVDS
Vertical Viewing Angle: -80/80
Horizontal Viewing Angle: -80/80
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Viewing Dir. 12:00
Outer Dimension (mm) 115.7 (W) x 76.7 (H) x 4.26 (D)
Backlight LED
Touchscreen None
Products specifications
Module Type TFT Digital
Diagonal Size 5.0"W
Type Transmissive
Display Mode AWV - Normally Black
Resolution 800x480
Brightness 900
Contrast Ratio 500:1
Interface LVDS
Vertical Viewing Angle: -80/80
Horizontal Viewing Angle: -80/80
Operating Temperature (C) -20 to 70
Storage Temperature (C) -30 to 80
Temperature Standard Industrial Temp
Viewing Dir. 12:00
Outer Dimension (mm) 115.7 (W) x 76.7 (H) x 4.26 (D)
Backlight LED
Touchscreen None
