2.27" 240x300 Resolution Memory In Pixel (MIP)

Kyocera P/N: TN0227ANVNANN-GNX03

ECB Mode (Normally Black), Reflective Technology, Ultra Low Power Consumption

Products specifications
Module TypeMemory In Pixel (MIP)
Diagonal Size2.27"
TypeReflective
Display ModeECB (Normally Black)
BacklightNo Backlight
Resolution240X300
Contrast Ratio40:1
InterfaceSerial
Vertical Viewing Angle: -60/60
Horizontal Viewing Angle:-60/60
Operating Temperature (C)-25 to 80
Storage Temperature (C)-30 to 80
Power Consumption Typ. (Fixed Screen)TBD
Power Consumption Typ. (Rewrite)TBD

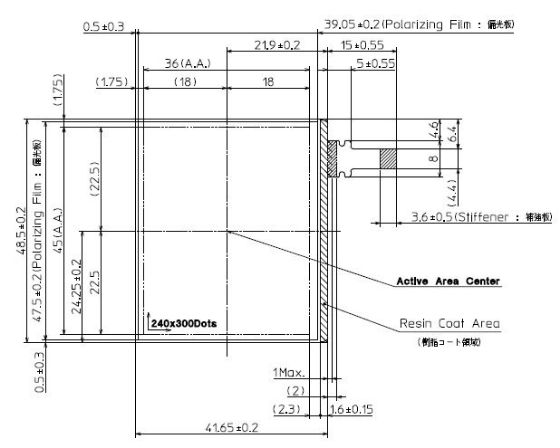

Outer Dimension (mm)41.65 (W) x 48.5 (H) x 1.41 (D)
